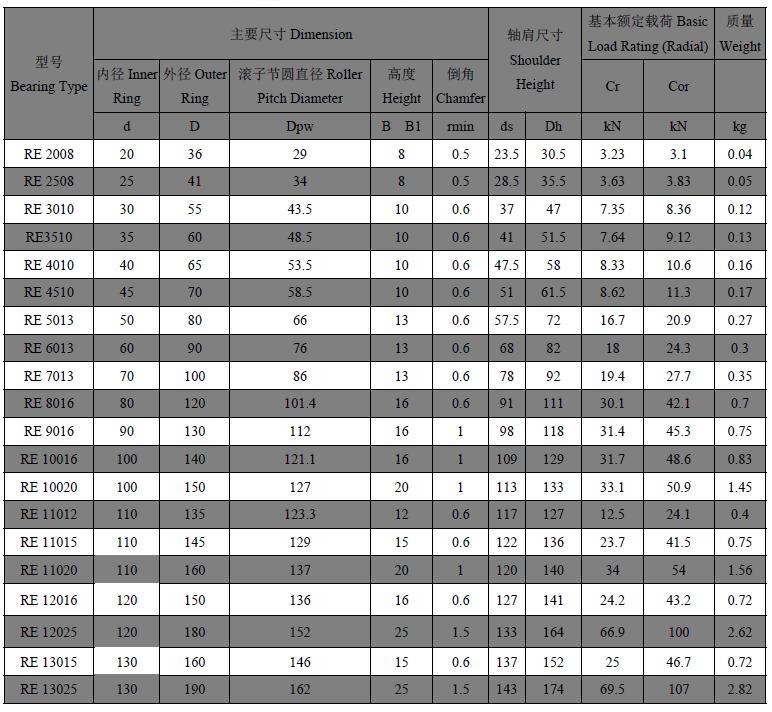

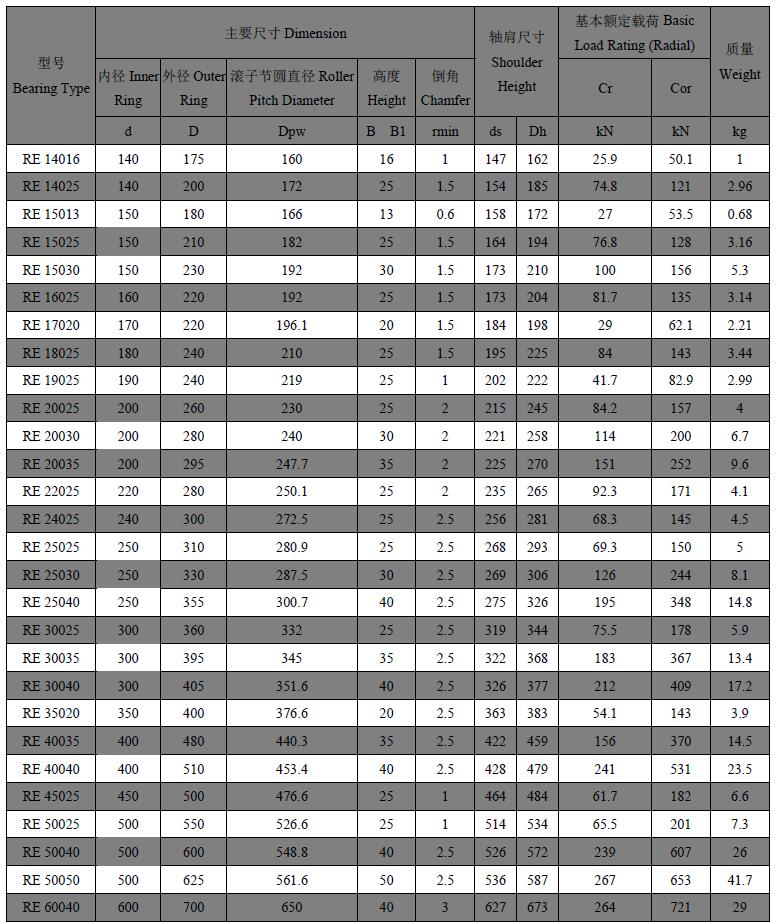

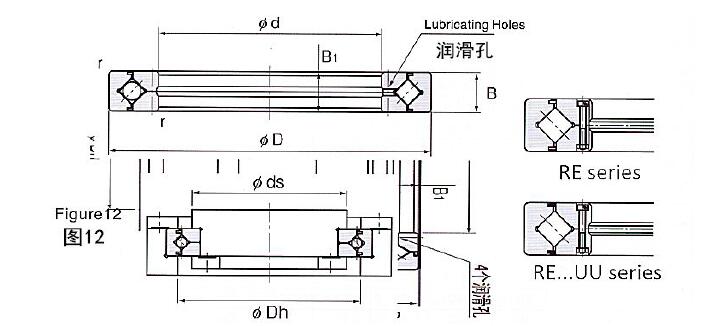

2.2 RE 型(外圈整體、內圈分體)RE series(Inner ring division type,outer rotating)

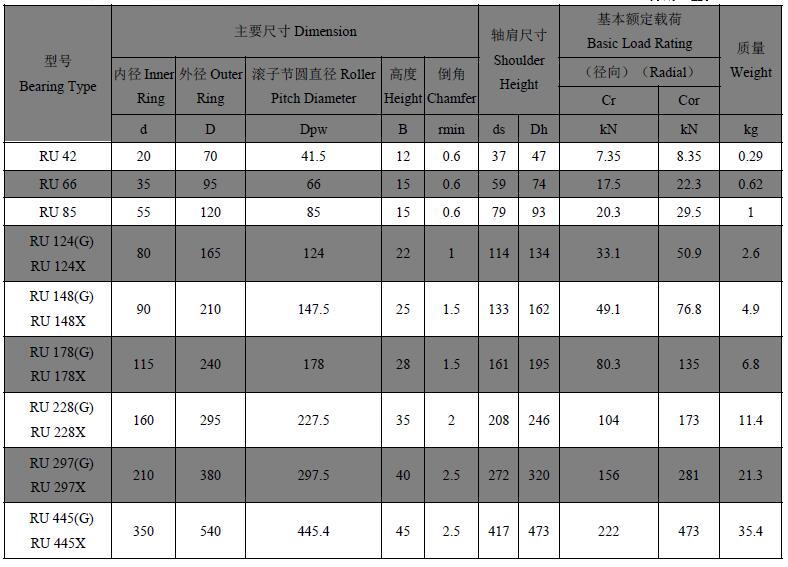

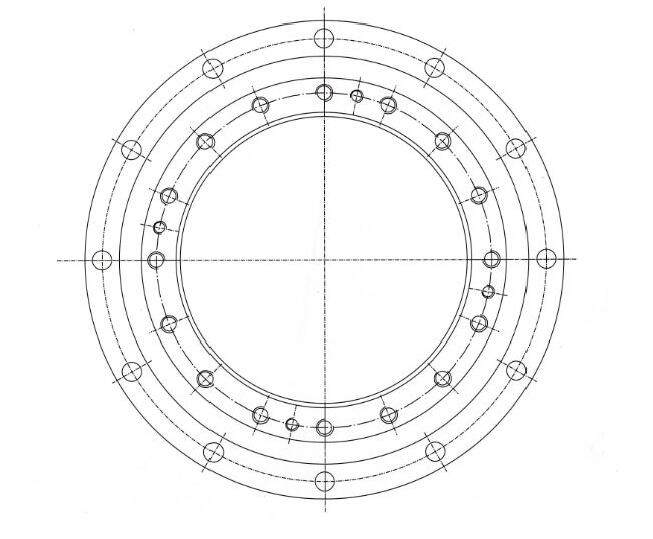

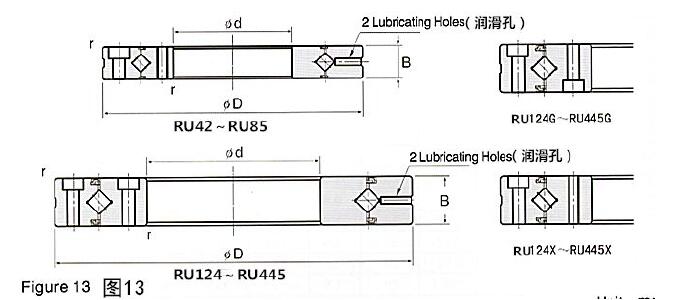

1.3 RU 型(內外圈整體、帶安裝孔)RU series(Inner Ring Rotation/ Outer Ring rotation )
注1:RU 型備有油嘴,可作為任選配件使用。
Note1: It can be used as optional accessory, RU type with lubricating nipple.
注2:如有需要,請在型號末尾加上:“—N”。
Notel: Please add “—N” at the end of the model,if you need.

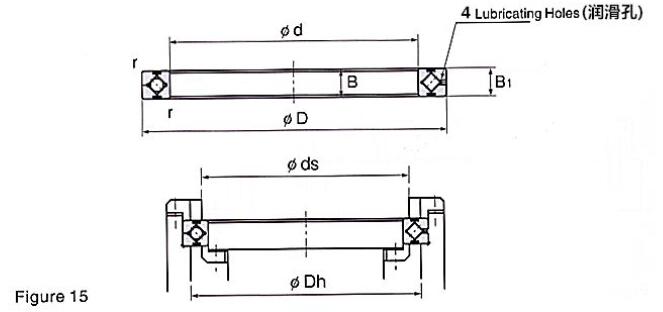

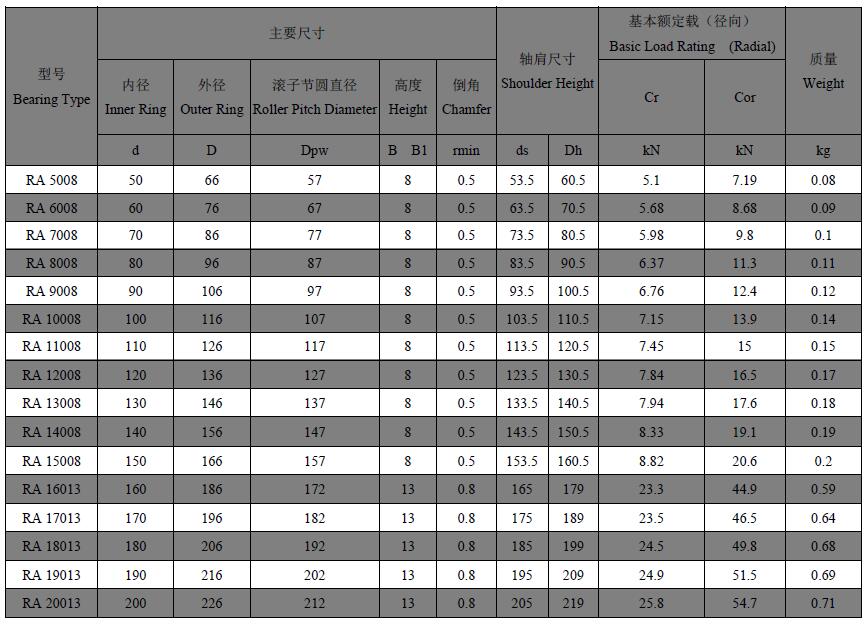

1.4 RA 型(內圈整體、外圈分體、超?。㏑A series(Inner ring integrity, outer ring division)

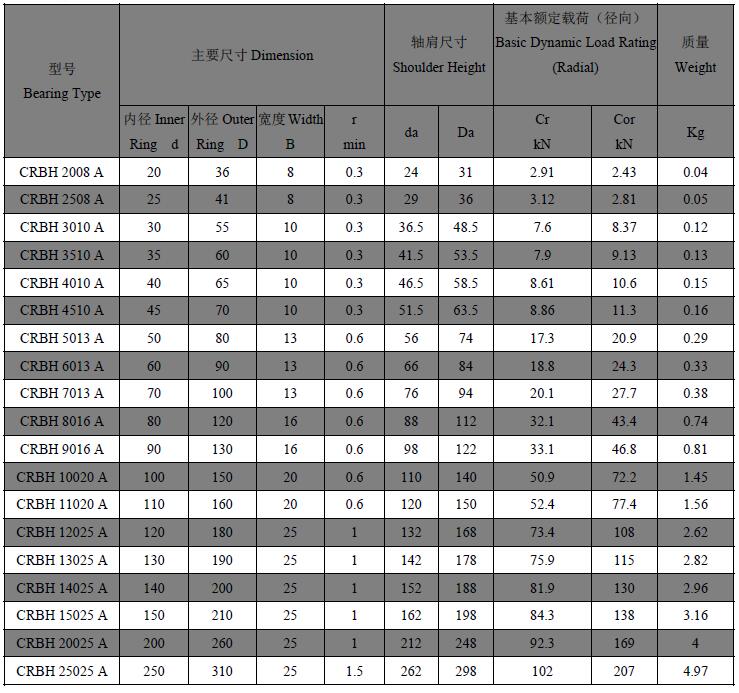

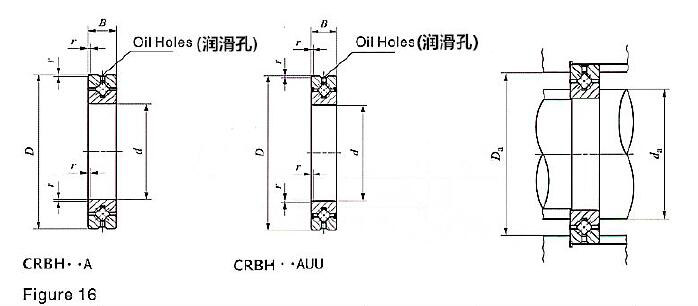

1.5 CRBH 型(內外圈整體、超?。〤RBH Inner Ring / Outer Ring Integrity, Thin Section

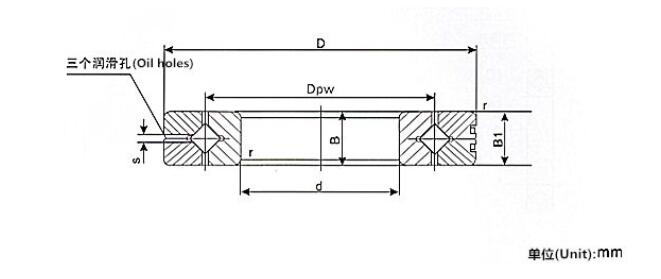

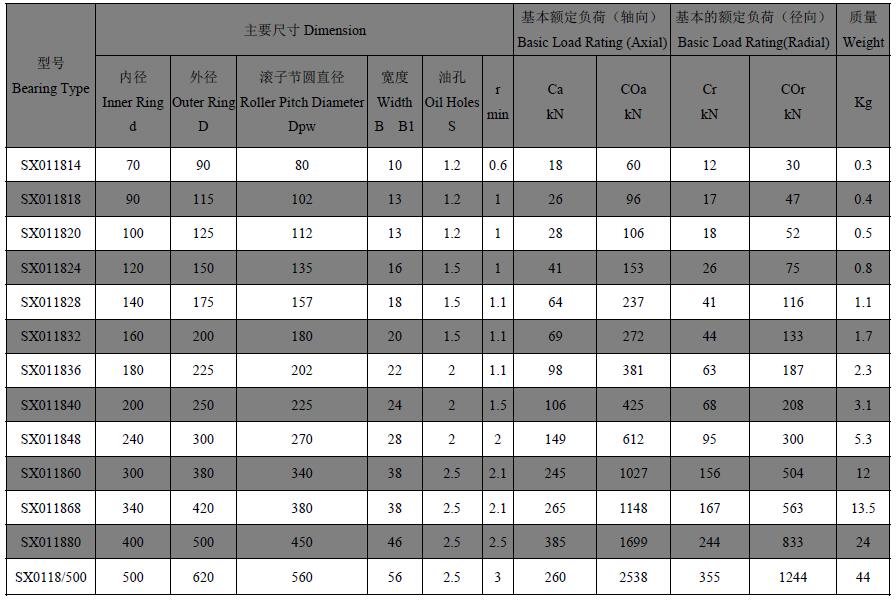

1.6 SX 系列(內圈整體、外圈分體、超?。㏒X series(Inner ring integrity,outer ring division,thin section)

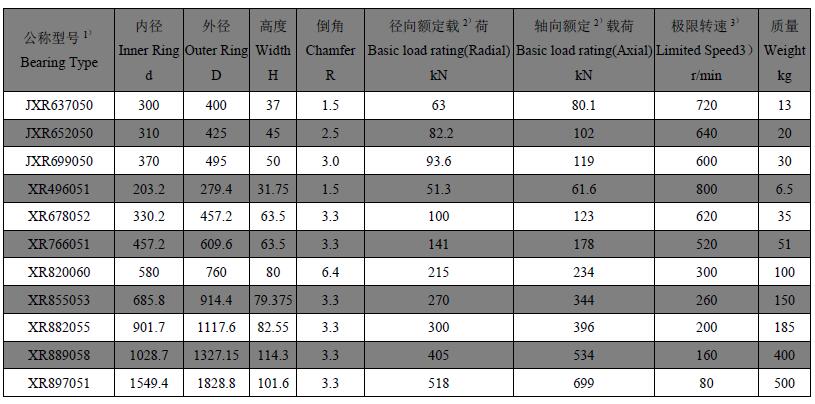

1.7 JXR/XR 系列尺寸規格表JXR/XR Dimension table
1) 載荷的計算是基于90×l06 轉(軸承的材料采用表面滲碳鋼)。
The calculation of the load is on the basic of 90×106(The bearing material is carburizingsteel) .
2) 預載荷大小、配合公差、軸承散熱條件等影響軸承的極限轉速。表中所列極限轉速是在循環油潤滑條件下的參考數值。
The limited speed depends on the preload. the fit tolerance and the heat release conduction and so on. The limited speed values in the table all for reference on the basic of circulating lubrication.
注意:1)我們也可以提供其它結構形式的交叉圓錐滾子軸承。
Note: We also can offer other types structures crossed taper roller bearings.
2)如需要特殊的尺寸、內外圈帶安裝孔、更高精度或者其它的結構等的軸承,請與我們聯系!
If any need special dimension. with fixing holes on inner rings or outer rings.higher precision.or other structures, please contact with Ouna!

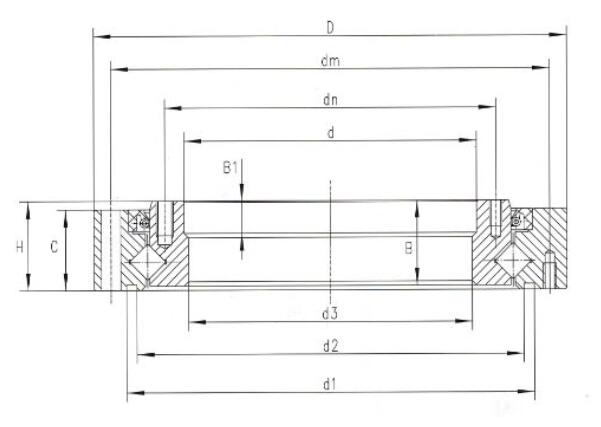

1.8, CSF(G)型(內圈整體,外圈分體) CSF(G) series (outer ring division type with innerrotation)
內圈整體結構,外圈被分為兩片,安裝時不需要法蘭和軸承座,直接安裝連接,使用非常方便,適合CSF(G)各種諧波減速機系列。
The inner rings have tow parts, and the outer ring is one integer.It is no need the presser flange or housing, the bearing can be installed directly connected, it is very convenient to use thebearing, it is well used for all types of CSF(G) harmonic reducer.

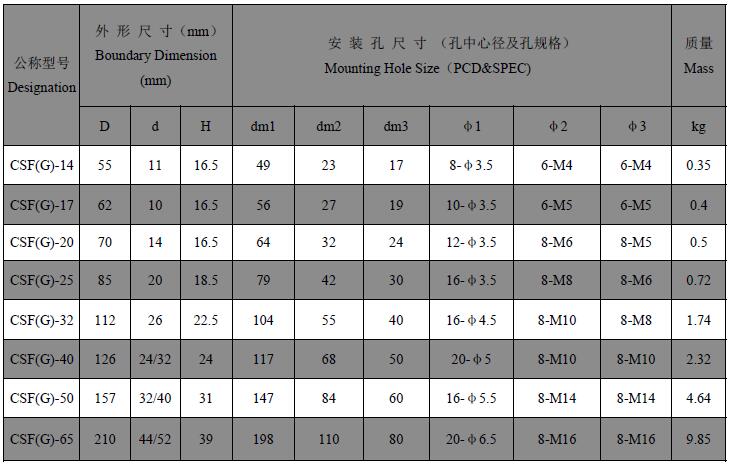

CSF(G)系列諧波減速機專用軸承型號如下:
The models of CSF(G) series harmonic reducer bearings as follows:

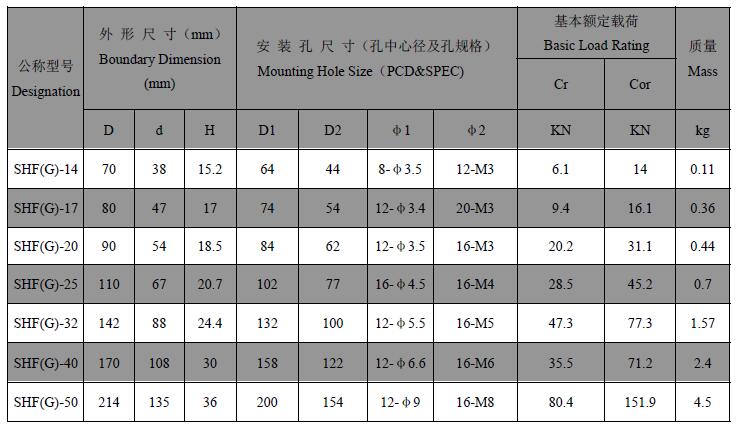

5.2, SHF(G)系列(內圈整體,外圈整體)SHF(G) series (Inner Ring / Outer Ring Integrity)內圈和外圈都為整體結構,安裝對性能幾乎無任何影響,能夠獲得穩定的的旋轉精度和扭矩,使用非常方便,適合SHF(G)各種諧波減速機系列。
It has an integrated inner and outer ring structure, its performance is minimally affected by the mounting procedure, so it is can ensure stable rotation accuracy and torque. it is very convenient to use the bearing, it is well used for all types of SHF(G) harmonic reducer.
SHF(G)系列諧波減速機專用軸承型號如下:
The models of SHF(G) series harmonic reducer bearings as follows:
我司***研發、設計、制造諧波減速機專用交叉滾子軸承,針對諧波減速機系列專用軸承客戶提供相關咨詢服務,需要了解諧波減速機專用軸承價格、詳細參數、使用及安裝、等
