單列英制圓錐滾子軸承
作者： 發布時間：2016-02-20 瀏覽次數：3540
| 型號 | 外形尺寸 | 計算系數 | 基本負荷(KN) | 極限轉速(r/min) | 重量(KG) | ||||||||||

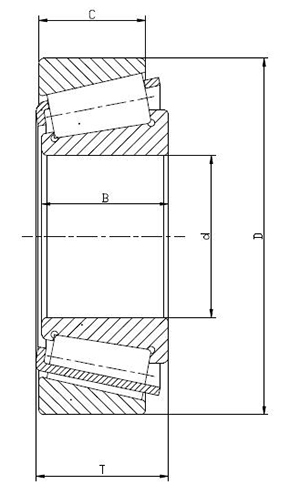

| d | D | T | C | B | Rsmin | rsmin | e | Y | Y0 | 動 | 靜 | 脂潤滑 | 油潤滑 | ||
| 90381/90744 | 96.838 | 188.921 | 50.8 | 46.038 | 31.75 | 3.5 | 3.3 | 0.87 | 0.7 | 0.38 | 220 | 350 | 1900 | 2800 | 5.5 |
| JM822049/JM822010 | 110 | 165 | 35 | 35 | 26.5 | 3 | 2.5 | 0.49 | 1.2 | 0.67 | 195 | 325 | 1900 | 2800 | 2.5 |
| 71450/71750 | 114.3 | 190.5 | 47.625 | 49.212 | 34.925 | 2.9 | 2.8 | 0.42 | 1.4 | 0.79 | 300 | 465 | 1700 | 2400 | 5.1 |
| HH224346/HH2243010 | 114.3 | 212.75 | 66.675 | 66.675 | 53.975 | 7 | 3.3 | 0.33 | 1.8 | 1.01 | 500 | 775 | 1700 | 2400 | 10.1 |
| 71453/71750 | 115.087 | 190.5 | 47.625 | 49.212 | 34.925 | 2.9 | 2.8 | 0.42 | 1.4 | 0.79 | 300 | 465 | 1700 | 2400 | 5.1 |
| HH228344/HH228310 | 123.825 | 254 | 77.788 | 82.55 | 61.912 | 9.7 | 6.4 | 0.32 | 1.9 | 1.03 | 795 | 1150 | 1700 | 2400 | 18.8 |
| HH228349/HH228310 | 127 | 254 | 77.788 | 82.55 | 61.912 | 9.7 | 6.4 | 0.32 | 1.9 | 1.03 | 750 | 1150 | 1700 | 2400 | 18.2 |
| EE420751/421437 | 190.5 | 365.049 | 92.075 | 88.897 | 63.5 | 6.4 | 3.3 | 0.4 | 1.5 | 0.82 | 1090 | 1595 | 800 | 14100 | 38.5 |
| JHM840449/JHM840410 | 200 | 300 | 65 | 62 | 51 | 3 | 1.5 | 0.53 | 1.1 | 0.62 | 600 | 1105 | 850 | 1200 | 15.2 |
| HH249949/HH249910 | 381 | 479.425 | 49.213 | 47.625 | 34.925 | 6.4 | 3.3 | 0.38 | 1.6 | 0.88 | 580 | 1350 | 600 | 750 | 19 |
| EE243196/243250 | 498.475 | 634.873 | 80.962 | 80.962 | 63.5 | 6.4 | 3.3 | 0.34 | 1.7 | 0.96 | 1375 | 1980 | 360 | 480 | 62.3 |
| LL778149/LL778110 | 584.2 | 685.8 | 49.212 | 49.212 | 34.925 | 3.5 | 3.3 | 0.44 | 1.4 | 0.76 | 655 | 1800 | 340 | 450 | 28.5 |
| L183448/L183410 | 759.925 | 889 | 88.9 | 88.9 | 72 | 3.3 | 3.3 | 0.32 | 1.9 | 1.04 | 1830 | 5510 | 260 | 360 | 89.8 |
| L183449/L183410 | 762 | 889 | 88.9 | 88.9 | 72 | 3.3 | 3.3 | 0.32 | 1.9 | 1.04 | 1830 | 5510 | 260 | 360 | 88.1 |
| EE763330/763410 | 838.2 | 1041.4 | 93.622 | 88.9 | 66.675 | 6.4 | 6.4 | 0.43 | 1.4 | 0.76 | 2280 | 6280 | 200 | 260 | 168 |
