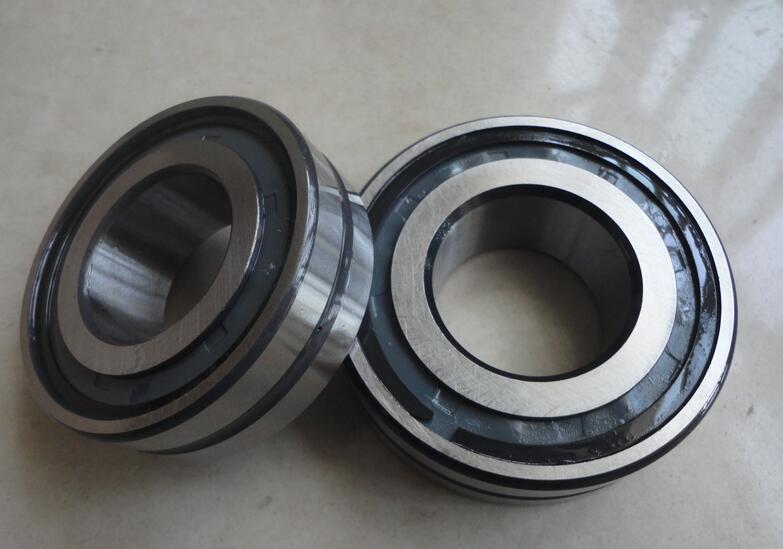

SB22210W33SS|SB22211W33SS|SB22212W33SS軸承
本公司生產的 替代MCGILL 軸承常見型號如下：
SB22204C3W33SS SB22205C3W33SS SB22206C3W33SS
SB22207C3W33SS SB22208C3W33SS SB22209C3W33SS
SB22210C3W33SS SB22211C3W33SS SB22212C3W33SS
SB22213C3W33SS SB22214C3W33SS SB22215C3W33SS
SB22216C3W33SS SB22217C3W33SS SB22218C3W33SS
SB22219C3W33SS SB22220C3W33SS SB22222C3W33SS
B22224C3W33SS SB22226C3W33SS SB22228C3W33SS
B22310C3W33SS SB22311C3W33SS SB22312C3W33SS
SB22313C3W33SS SB22314C3W33SS SB22315C3W33SS
SB22316C3W33SS SB22317C3W33SS SB22318C3W33SS
SB22319C3W33SS SB22320C3W33SS
| 軸承型號 | 外型尺寸 mm | 額定負荷 KN | ||||
| Type | bcundary dimensions | basic load ratings | ||||
| 新型號 | 老型號 | 內徑 | 外徑 | 寬度 | 動負荷 | 靜負荷 |
| new | old | d | D | B | Cr(KN) | Cor(KN) |
| SB-22206W33SS | 30 | 62 | 20 | 51.4 | 48.8 | |
| SB-22207W33SS | 35 | 72 | 23 | 67.6 | 67.1 | |
| SB-22208W33SS | 40 | 80 | 23 | 75.1 | 74.4 | |
| SB-22308W33SS | 40 | 90 | 33 | 114 | 116 | |
| SB-22209W33SS | 45 | 85 | 23 | 78.6 | 80.5 | |
| SB-22309W33SS | 45 | 100 | 36 | 134 | 151.6 | |
| SB-22210W33SS | 50 | 90 | 23 | 83.8 | 89 | |
| SB-22310W33SS | 50 | 110 | 40 | 166 | 185.5 | |
| SB-22211W33SS | 55 | 100 | 25 | 102.3 | 126 | |
| SB-22311W33SS | 55 | 120 | 43 | 184 | 231.8 | |
| SB-22212W33SS | 60 | 110 | 28 | 130 | 155 | |
| SB-22312W33SS | 60 | 130 | 46 | 236 | 252.5 | |
| SB-22213W33SS | 65 | 120 | 31 | 158 | 179 | |
| SB-22313W33SS | 65 | 140 | 48 | 256.9 | 273.1 | |
| SB-22214W33SS | 70 | 125 | 31 | 160 | 189 | |
| SB-22314W33SS | 70 | 150 | 51 | 304 | 356 | |
| SB-22215W33SS | 75 | 130 | 31 | 167.3 | 199 | |
| SB-22315W33SS | 75 | 160 | 55 | 333 | 393 | |
| SB-22216W33SS | 80 | 140 | 33 | 186 | 218.5 | |
| SB-22316W33SS | 80 | 170 | 58 | 345 | 447 | |
| SB-22217W33SS | 85 | 150 | 36 | 226.4 | 269 | |
| SB-22317W33SS | 85 | 180 | 60 | 422 | 475.7 | |
| SB-22218W33SS | 90 | 160 | 40 | 263.3 | 310 | |
| SB-22318W33SS | 90 | 190 | 64 | 438 | 576 | |
| SB-22219W33SS | 95 | 170 | 43 | 315 | 373 | |
| SB-22319W33SS | 95 | 200 | 67 | 487 | 634 | |
| SB-22220W33SS | 100 | 180 | 46 | 333 | 403.4 | |
| SB-22320W33SS | 100 | 215 | 73 | 573 | 787 | |
| SB-22222W33SS | 110 | 200 | 53 | 428.8 | 539.3 | |
| SB-23024W33SS | 120 | 180 | 46 | 314 | 462 | |
| SB-22224W33SS | 120 | 215 | 58 | 504.2 | 625.7 | |
| SB-22226W33SS | 130 | 230 | 64 | 590 | 774 | |
| SB-22228W33SS | 140 | 250 | 68 | 708 | 929 | |
