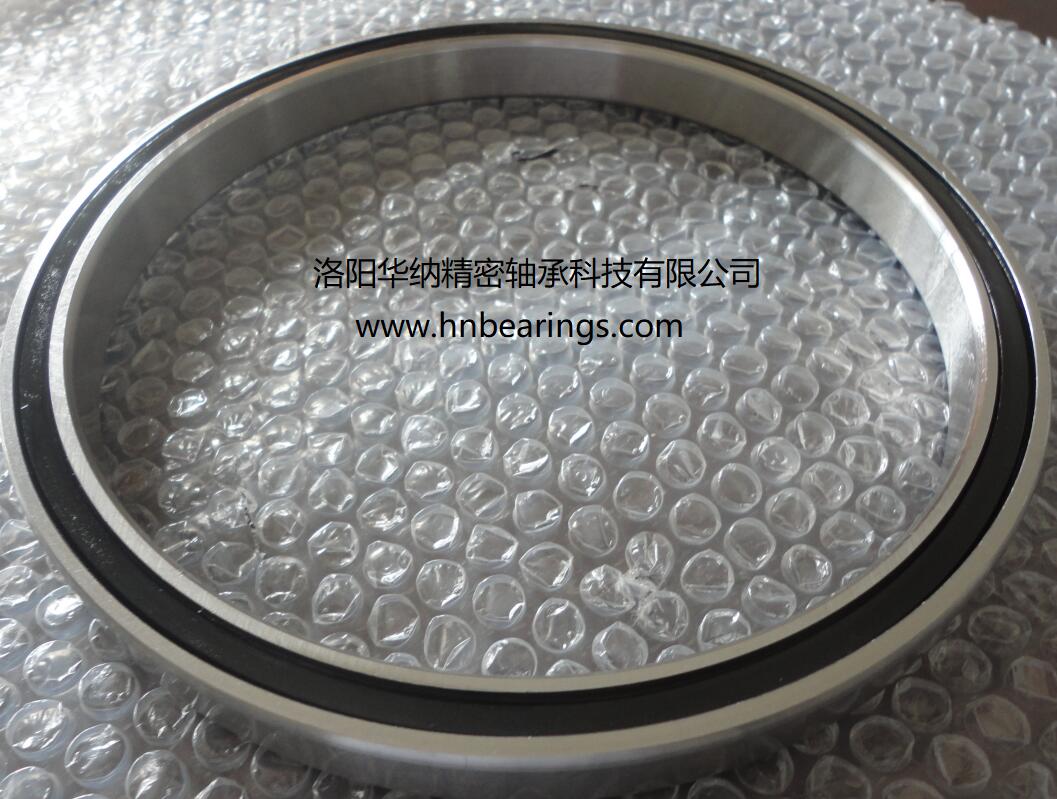

JG350XP0雙密封等截面球軸承
作者： 發布時間：2025-03-01 瀏覽次數：2629
洛陽華納精密軸承科技有限公司長期生產各類等截面薄壁球軸承，生產的帶雙側橡膠密封結構工藝，防止灰塵進入旋轉軌道，從而有效的提高了軸承的使用壽命，同時起到了防止軸承溝道內部潤滑脂外漏等情況。目前帶雙側橡膠密封結構工藝大做到直徑1.5米，除了標準的型號外，也可以按照客戶要求定制非標等截面球軸承，根據不同客戶的裝機要求特制軸承尺寸，改變軸承的內徑 外徑 裝配高 都可以改制成非標的工藝按照客戶要求。材料如果客戶沒有特殊要求，一般選用軸承鋼，淬火熱處理硬度HRC58~62.具有超強的耐磨性。軸承內部結構可做成CP0深溝球結構，主要承受徑向受力，及其XP0四點接觸式結構，鋼球在內圈 外圈溝道各有兩個接觸點，從而使軸承軸向 和 徑向都可以受力。根據不同設備選定結構。
如果客戶使用環境具有強酸強堿，也可以根據客戶要求定制成不銹鋼材質。如果受力過大，使用轉速低，也可以定制成滿球工藝，從而有效提高了軸承載荷。
JG400XP0 JG400CP0 JG350XP0 JG350CP0 JG300XP0 JG300CP0 JG070XP0 JG070CP0 JG075XP0 JG075CP0 JG080XP0 JG080CP0 JG090XP0 JG090CP0 JG100XP0 JG100CP0 JG110XP0 JG110CP0 JG120XP0 JG120CP0 JG140XP0 JG140CP0 JG160XP0 JG160CP0
JG180XP0 JG180CP0 JG200XP0 JG200CP0 JG220XP0 JG220CP0 JG250XP0 JG250CP0 JG300XP0 JG300CP0 JG350XP0 JG350CP0 JG400XP0 JG400CP0
| 型號 Type | 型號 Type | 尺寸 | 基本載荷 | Weight | |||||||
| (inch/mm) Dimension | Basic Cap.N | Kg | 國外型號 | 國外型號 | |||||||
| d | D | B | 徑向Radial | 軸向Thruet | KAYDON | KAYDON | |||||
| Cor | Cr | Coa | Ca | ||||||||
| HNJG070XP0 | HNJG070CP0 | 7 | 9 | 1 | 58363 | 45375 | 145929 | 68453 | 2.631 | JG070XP0 | JG070CP0 |
| 177.8 | 228.6 | 25.4 | |||||||||
| HNJG075XP0 | HNJG075CP0 | 7.5 | 9.5 | 1 | 60808 | 46272 | 152019 | 70320 | 2.766 | JG075XP0 | JG075CP0 |
| 190.5 | 241.3 | 25.4 | |||||||||
| HNJG080XP0 | HNJG080CP0 | 8 | 10 | 1 | 65653 | 48370 | 164198 | 74009 | 2.948 | JG080XP0 | JG080CP0 |
| 203.2 | 254 | 25.4 | |||||||||
| HNJG090XP0 | HNJG090CP0 | 9 | 11 | 1 | 72987 | 51233 | 182423 | 79432 | 3.264 | JG090XP0 | JG090CP0 |
| 228.6 | 279.4 | 25.4 | |||||||||
| HNJG100XP0 | HNJG100CP0 | 10 | 12 | 1 | 80277 | 53993 | 200647 | 84633 | 3.582 | JG100XP0 | JG100CP0 |
| 254 | 304.8 | 25.4 | |||||||||
| HNJG110XP0 | HNJG110CP0 | 11 | 13 | 1 | 87567 | 56625 | 218916 | 89700 | 3.899 | JG110XP0 | JG110CP0 |
| 279.4 | 330.2 | 25.4 | |||||||||
| HNJG120XP0 | HNJG120CP0 | 12 | 14 | 1 | 94860 | 37830 | 237140 | 94590 | 4.218 | JG120XP0 | JG120CP0 |
| 304.8 | 355.6 | 25.4 | |||||||||
| HNJG140XP0 | HNJG140CP0 | 14 | 16 | 1 | 109440 | 41610 | 273630 | 104060 | 4.899 | JG140XP0 | JG140CP0 |
| 355.6 | 406.4 | 25.4 | |||||||||
| HNJG160XP0 | HNJG160CP0 | 16 | 18 | 1 | 124060 | 45250 | 310130 | 113130 | 5.579 | JG160XP0 | JG160CP0 |
| 406.4 | 457.2 | 25.4 | |||||||||
| HNJG180XP0 | HNJG180CP0 | 18 | 20 | 1 | 138640 | 48720 | 346620 | 121840 | 6.214 | JG180XP0 | JG180CP0 |
| 457.2 | 508 | 25.4 | |||||||||
| HNJG200XP0 | HNJG200CP0 | 20 | 22 | 1 | 153220 | 52100 | 383070 | 130240 | 7.167 | JG200XP0 | JG200CP0 |
| 508 | 558.8 | 25.4 | |||||||||
| HNJG220XP0 | HNJG220CP0 | 22 | 24 | 1 | 167799 | 80686 | 419564 | 138373 | 7.617 | JG220XP0 | JG220CP0 |
| 558.8 | 609.6 | 25.4 | |||||||||
| HNJG250XP0 | HNJG250CP0 | 25 | 27 | 1 | 189713 | 86055 | 474282 | 150152 | 8.841 | JG250XP0 | JG250CP0 |
| 635 | 685.8 | 25.4 | |||||||||
| HNJG300XP0 | HNJG300CP0 | 30 | 32 | 1 | 226206 | 94234 | 565404 | 168821 | 10.564 | JG300XP0 | JG300CP0 |
| 762 | 812.8 | 25.4 | |||||||||
| HNJG350XP0 | HNJG350CP0 | 35 | 37 | 1 | 262700 | 101546 | 656527 | 186557 | 12.287 | JG350XP0 | JG350CP0 |
| 889 | 939.8 | 25.4 | |||||||||
| HNJG400XP0 | HNJG400CP0 | 40 | 42 | 1 | 281413 | 108156 | 748094 | 203448 | 13.965 | JG400XP0 | JG400CP0 |
| 1016 | 1066.8 | 25.4 | |||||||||
