汽車發(fā)電機軸承
作者： 發(fā)布時間：2019-03-11 瀏覽次數(shù)：2013

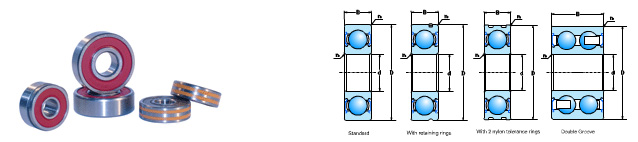

| Dimensions(mm) | Basic load ratings(N) | Limiting speeds | Weight | Remarks | Item No. | ||||
| d | D | B | rsmin | Cr | Cor | Rpm | Kg | UJK | |
| 8 | 22 | 7 | 0.3 | 3350 | 1400 | 32000 | 0.015 | 608-2RDA | |
| 8 | 22 | 11 | 0.3 | 3350 | 1400 | 32000 | with retaining ring | B874-2RDA | |
| 8 | 23 | 14 | 0.3 | 3350 | 1400 | 32000 | with 2 nylon tolerence rings | B800-2RDA | |
| 8 | 23 | 11 | 0.3 | 3350 | 1400 | 32000 | with retaining ring | B879-2RDA | |
| 8 | 23 | 14 | 0.3 | 3350 | 1400 | 32000 | with retaining ring | B885-2RDA | |
| 9 | 26 | 8 | 0.3 | 4550 | 1960 | 30000 | 0.023 | 629-2RDA | |
| 10 | 23 | 11 | 0.3 | 2700 | 1270 | 30000 | with retaining ring | B1046-2RDA | |
| 10 | 25 | 10 | 0.3 | 4550 | 1960 | 26000 | 0.024 | 62000-2RDA | |
| 10 | 26 | 8 | 0.3 | 4550 | 1960 | 29000 | 0.019 | 6000-2RDA | |
| 10 | 26 | 8 | 0.3 | 4550 | 1960 | 29000 | 0.019 | with 2 nylon tolerance rings | 6-100-2RDA |
| 10 | 27 | 11 | 0.3 | 4550 | 1960 | 29000 | with retaining ring | B1050-2RDA | |
| 10 | 27 | 14 | 0.3 | 4550 | 1960 | 29000 | with 2 nylon tolerence rings | B900-2RDA | |
| 10 | 30 | 9 | 0.6 | 5100 | 2390 | 25000 | 0.035 | 6200-2RDA | |
| 12 | 28 | 8 | 0.3 | 5100 | 2390 | 26000 | 0.024 | 6001-2RDA | |
| 12 | 32 | 10 | 0.6 | 6100 | 2750 | 22000 | 0.04 | 6201-2RDA | |
| 12 | 32 | 14 | 0.6 | 6100 | 2750 | 22000 | 0.049 | 62201-2RDA | |
| 12 | 32 | 10 | 0.6 | 6100 | 2750 | 22000 | with retaining ring | B2012-2RDA | |
| 12 | 35 | 18 | 0.6 | 6100 | 2750 | 22000 | B2011-2RDA | ||
| 12 | 37 | 12 | 1 | 9700 | 4200 | 20000 | 0.064 | 6301-2RDA | |
| 12.7 | 28.58 | 7.938 | 0.4 | 4040 | 1750 | 19000 | 0.018 | Inch size: 1/2"x1-1/8"x5/16" | R8-2RDA |
| Dimensions(mm) | Basic load ratings(N) | Limiting speeds | Weight | Remarks | Item No. | ||||
| d | D | B | rsmin | Cr | Cor | Rpm | Kg | UJK | |
| 15 | 35 | 11 | 0.6 | 7750 | 3600 | 19000 | 0.048 | 6202-2RDA | |
| 15 | 35 | 13 | 0.6 | 7750 | 3600 | 19000 | B2021-2RDA | ||
| 15 | 38 | 19 | 0.6 | 7750 | 3600 | 19000 | B2022-2RDA | ||
| 15 | 42 | 13 | 1 | 11400 | 5450 | 17000 | 0.085 | 6302-2RDA | |
| 15 | 43 | 13 | 1 | 11400 | 5450 | 17000 | B3021-2RDA | ||
| 15 | 46 | 14 | 1 | 13500 | 6550 | 16000 | B3022-2RDA | ||
| 15 | 47 | 18 | 0.3 | 6800 | 3350 | 20000 | B1583-2RDA | ||
| 15 | 47 | 14 | 1 | 13500 | 6550 | 16000 | B3031-2RDA | ||
| 15 | 52 | 16 | 1.1 | 15900 | 7900 | 14000 | B3041-2RDA | ||
| 17 | 30 | 7 | 0.3 | 4650 | 2580 | 22000 | 0.021 | 6903-2RDA | |
| 17 | 35 | 10 | 0.3 | 6800 | 3350 | 20000 | 0.042 | 6003-2RDA | |
| 17 | 40 | 12 | 0.6 | 9600 | 4600 | 18000 | 0.072 | 6203-2RDA | |
| 17 | 47 | 14 | 1 | 13500 | 6550 | 16000 | 0.12 | 6303-2RDA | |
| 17 | 47 | 18 | 0.3 | 6800 | 3350 | 20000 | B1594-2RDA | ||
| 17 | 47 | 24 | 1 | 13500 | 6550 | 16000 | Double row ball | B3032-2RDA | |
| 17 | 52 | 16 | 1.1 | 15900 | 7900 | 14000 | B3042-2RDA | ||
| 17 | 52 | 17 | 1.1 | 15900 | 7900 | 14000 | B3043-2RDA | ||
| 17 | 52 | 18 | 1.1 | 15900 | 7900 | 14000 | B3044-2RDA | ||
| 20 | 37 | 9 | 0.3 | 6400 | 3700 | 19000 | 0.041 | 6904-2RDA | |
| 20 | 42 | 12 | 0.6 | 9400 | 5050 | 18000 | 0.072 | 6004-2RDA | |
| 20 | 47 | 14 | 1 | 12800 | 6650 | 16000 | 0.11 | 6204-2RDA | |
| 20 | 52 | 15 | 1.1 | 15900 | 7900 | 14000 | 0.15 | 6304-2RDA | |
| 25 | 42 | 9 | 0.3 | 7050 | 4550 | 16000 | 0.046 | 6905-2RDA | |
| 25 | 47 | 12 | 0.6 | 10400 | 5850 | 15000 | 0.085 | 6005-2RDA | |
| 25 | 52 | 15 | 1 | 14000 | 7850 | 13000 | 0.132 | 6205-2RDA | |
| 25 | 62 | 17 | 1.1 | 21200 | 10900 | 12000 | 0.24 | 6305-2RDA | |
| 25 | 62 | 25.4 | 1.1 | 21200 | 10900 | 8100 | 0.384 | 63305-2RDA | |
| 30 | 47 | 9 | 0.3 | 7250 | 5000 | 14000 | 0.05 | 6906-2RDA | |
| 30 | 55 | 13 | 1 | 13200 | 8300 | 13000 | 0.12 | 6006-2RDA | |
| 30 | 62 | 16 | 1 | 19500 | 11300 | 11000 | 0.208 | 6206-2RDA | |
| 30 | 72 | 19 | 1.1 | 26700 | 15000 | 10000 | 0.39 | 6306-2RDA | |
| 30 | 72 | 30.2 | 1.1 | 26700 | 15000 | 6600 | 0.553 | 63306-2RDA | |
| 45 | 85 | 19 | 1.1 | 32500 | 20400 | 7800 | 0.44 | 6209-2RDA | |
