CPM系列軸承批量投產

作者：發布時間：2018-04-09 瀏覽次數：5214

打印收藏關閉

字體【大中小】

視力保護色

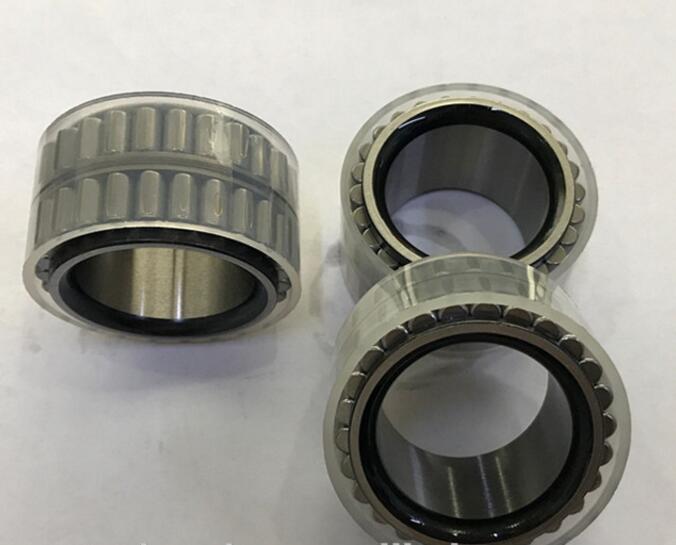

Full Complement CPM 2466 Cylindrical Roller Bearing CPM2466

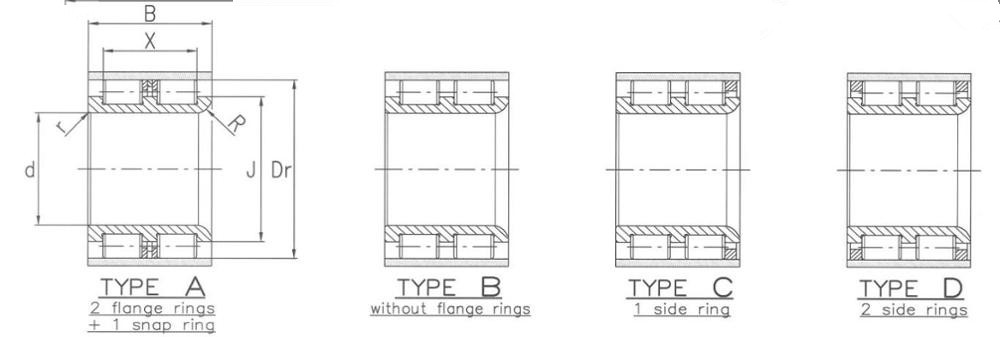

d/mm	Dr/mm	B/mm	J/mm	X/mm	R min	r min	Cr kN	Cor kN	TYPE	Bearing NO.
18	32.300	20.5	25.9	14.9	2.0	0.3	24.1	25.7	A	CPM 2699
22	36.200	30.0	30.8	23.0	2.5	0.7	47.5	68.8	A	CPM 2435
22	38.750	22.5	31.0	17.3	2.0	0.3	34.6	38.1	A	CPM 2535
22	38.750	22.5	31.0	17.3	2.0	0.3	34.6	38.1	A	CPM 2834
24	40.250	26.0	34.3	20.0	2.5	0.3	44.0	59.8	A	CPM 2400
24	40.250	34.0	34.3	24.0	2.0	2.0	53.3	76.4	A	CPM 2597
25	40.250	26.0	34.3	20.0	2.5	0.3	44.0	59.8	A	CPM 2686
25	40.250	32.0	34.3	24.0	3.0	0.3	53.3	76.4	A	CPM 2613
28	44.450	34.0	36.5	27.6	2.5	0.3	70.8	99.8	A	CPM 2776
30	46.400	32.0	38.7	27.6	2.0	0.3	73.2	105.7	A	CPM 2594
30	48.250	40.0	40.6	32.0	2.5	2.5	85.8	131.6	A	CPM 2687
30	49.600	26.0	38.6	20.0	3.0	0.3	57.0	70.3	D	CPM 2510
30	49.600	24.0	40.0	18.0	3.0	0.3	50.8	60.6	A	CPM 2178
30	49.600	25.0	40.0	18.9	3.0	0.3	50.8	60.6	A	CPM 2651
30	49.600	26.0	40.0	20.0	3.0	0.3	57.1	70.4	A	CPM 2198
30	49.600	30.0	40.0	24.0	2.6	0.3	69.1	90.0	A	CPM 2683
32	46.600	25.0	41.0	20.5	3.0	0.3	54.3	82.5	D	CPM 2508
32	46.600	28.0	41.0	22.0	3.0	0.3	54.3	82.5	A	CPM 2183
32	46.600	28.0	41.0	22.0	3.0	0.3	54.3	82.5	A	CPM 2439
32	48.240	34.0	41.0	27.6	2.5	0.3	76.0	112.0	A	CPM 2668
32	51.750	25.0	42.5	19.9	3.0	0.3	59.1	74.7	A	CPM 2496
32	51.750	29.0	42.5	24.0	3.0	0.3	71.5	95.5	A	CPM 2579
34	50.200	29.0	42.5	23.6	2.5	0.3	66.7	96.6	A	CPM 2634
35	49.800	28.0	43.9	22.0	3.0	0.3	56.8	89.7	A	CPM 2434
35	52.090	26.5	44.5	20.9	2.5	0.3	56.6	79.4	A	CPM 2723
35	55.520	36.0	45.0	28.0	0.6	0.6	83.6	113.6	B	CPM 2470
35	55.520	36.0	45.0	28.0	0.6	0.6	83.6	113.6	A	CPM 2520
35	55.520	36.0	45.0	28.0	2.5	0.3	83.6	113.6	A	CPM 2706
35	59.190	27.0	48.2	21.3	3.0	0.3	68.4	85.5	A	CPM 2721
35	64.300	26.5	52.9	20.9	2.5	0.3	72.9	95.7	A	CPM 2528
38	52.950	28.0	47.0	22.0	3.0	0.3	59.2	97.0	A	CPM 2164
38	52.950	29.5	47.5	21.9	3.2	0.1	59.2	97.0	A	CPM 2504
38	52.950	29.5	48.5	21.9	3.7	0.1	59.2	97.0	A	CPM 2806
38	54.686	29.5	49.5	20.7	4.0	0.1	56.9	86.7	A	CPM 2464
38	54.690	29.5	49.2	21.6	4.0	0.1	63.0	99.0	A	CPM 2458
38	57.910	38.0	48.0	32.0	3.0	0.3	106.0	156.0	A	CPM 2669
40	57.810	34.0	50.0	28.0	3.2	0.3	96.0	141.0	A	CPM 2827
40	60.680	31.0	51.4	25.6	3.2	0.3	80.8	118.1	D	CPM 2729
40	61.740	28.0	50.2	20.9	3.0	0.3	70.6	90.6	C	CPM 2188
40	61.740	35.5	50.2	27.6	2.6	0.3	100.0	140.0	A	CPM 2650
42	60.750	37.0	51.5	30.9	3.0	0.3	100.7	156.9	A	CPM 2412
42	60.750	37.0	51.5	31.6	3.0	0.3	107.2	169.7	A	CPM 2777
44	61.600	34.0	53.9	28.0	3.2	0.3	90.1	153.0	A	CPM 2592
44	62.970	37.0	53.4	30.9	2.5	0.3	103.5	164.4	A	CPM 2401
45	61.550	32.0	53.8	24.9	3.0	0.3	77.3	125.7	A	CPM 2559
45	61.550	36.0	53.9	28.9	3.0	0.3	90.0	153.0	A	CPM 2425
45	65.020	34.0	54.5	27.3	3.0	0.3	94.3	140.4	A	CPM 2647
45	66.850	37.5	55.8	28.6	3.5	0.3	105.8	156.7	A	CPM 2722
45	66.850	37.5	55.8	28.6	3.5	0.3	123.0	157.0	A	CPM 2828
45	83.880	85.0	64.2	64.7	1.1	1.1	268.0	393.9	D	CPM 2619
46	69.500	45.0	56.5	37.3	3.2	0.3	145.0	207.0	A	CPM 2807
50	67.280	32.0	61.0	25.8	3.2	0.3	75.7	145.2	A	CPM 2530
50	67.360	40.0	60.4	32.6	4.0	1.0	109.0	201.0	A	CPM 2720
50	69.580	40.0	60.3	33.3	3.0	0.3	118.0	202.0	B	CPM 2719
50	69.670	32.0	60.3	24.9	3.0	0.3	89.1	141.0	A	CPM 2492
50	69.670	37.5	60.3	31.4	2.5	0.3	111.2	186.9	A	CPM 2609
50	72.050	37.0	61.8	28.5	4.0	0.1	111.7	172.5	A	CPM 2466
50	72.330	40.0	59.0	33.1	1.1	1.1	130.9	194.3	C	CPM 2190
50	72.330	40.0	59.0	33.1	1.1	1.1	130.9	194.3	C	CPM 2465
